Fabricated Cooking Equipment > Cooking Equipment
Single Burner Range
Single Burner Range
  • Single Burner Indian Gas Range-Splash Back & U/s
  • Fabricated Fully in SS.304 with Top & Side and Pilot & Manifold
  • Panels:18Swg. U/Shelf:SS Flat Tubes
  • Legs: SS 40x40mm Sq. pipe, with Adjustable Nylon Bullet feet. Drip Tray, & Heavy Duty CI Pan Support.
  • Burners: 1 High Pressure Manifold, Pigtail, Control valves etc.
  • Size: 24x24x30" H+5

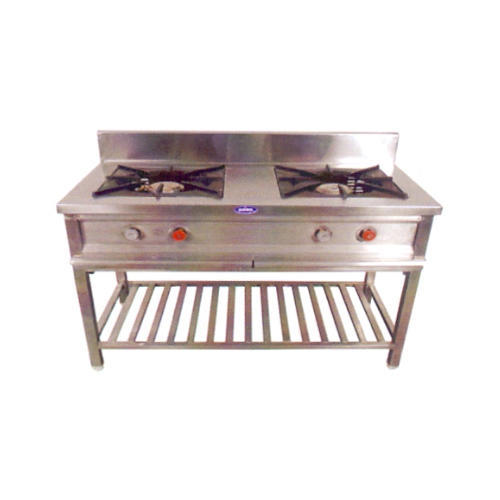

Two Burner Range
Two Burner Indian Range
  • 2 Burner Indian Gas Range with Splash Back & Under Shelf
  • Fully fabricated in SS 304 with 18 SWG top & side panels
  • Under shelf made of SS flat tubes with pilot & manifold system
  • Legs: SS 40×40 mm square pipe with adjustable nylon bullet feet
  • Includes drip tray and heavy-duty CI pan support
  • Burners: 1 High,1 Low Pressure burners with 1 pilot manifold, pigtail & control valves
  • Size: 44 × 24 × 30 inches (H + 5 inches)
Three Burner Range
Three Burner Range
  • 3 Burner Indian Gas Range with Splash Back & Under Shelf
  • Fully fabricated in SS 304 with 18 SWG top, side, pilot & manifold panels
  • Under shelf made of SS flat tubes
  • Legs: SS 40×40 mm square pipe with adjustable nylon bullet feet
  • Includes drip tray and heavy-duty CI pan support
  • Burners: 1 High, 2 Low Pressure, with 1Pilot with Manifold etc etc.
  • Size: 60 / 66 / 72 × 24 × 30 inches (H + 5 inches)
Three Burner Range

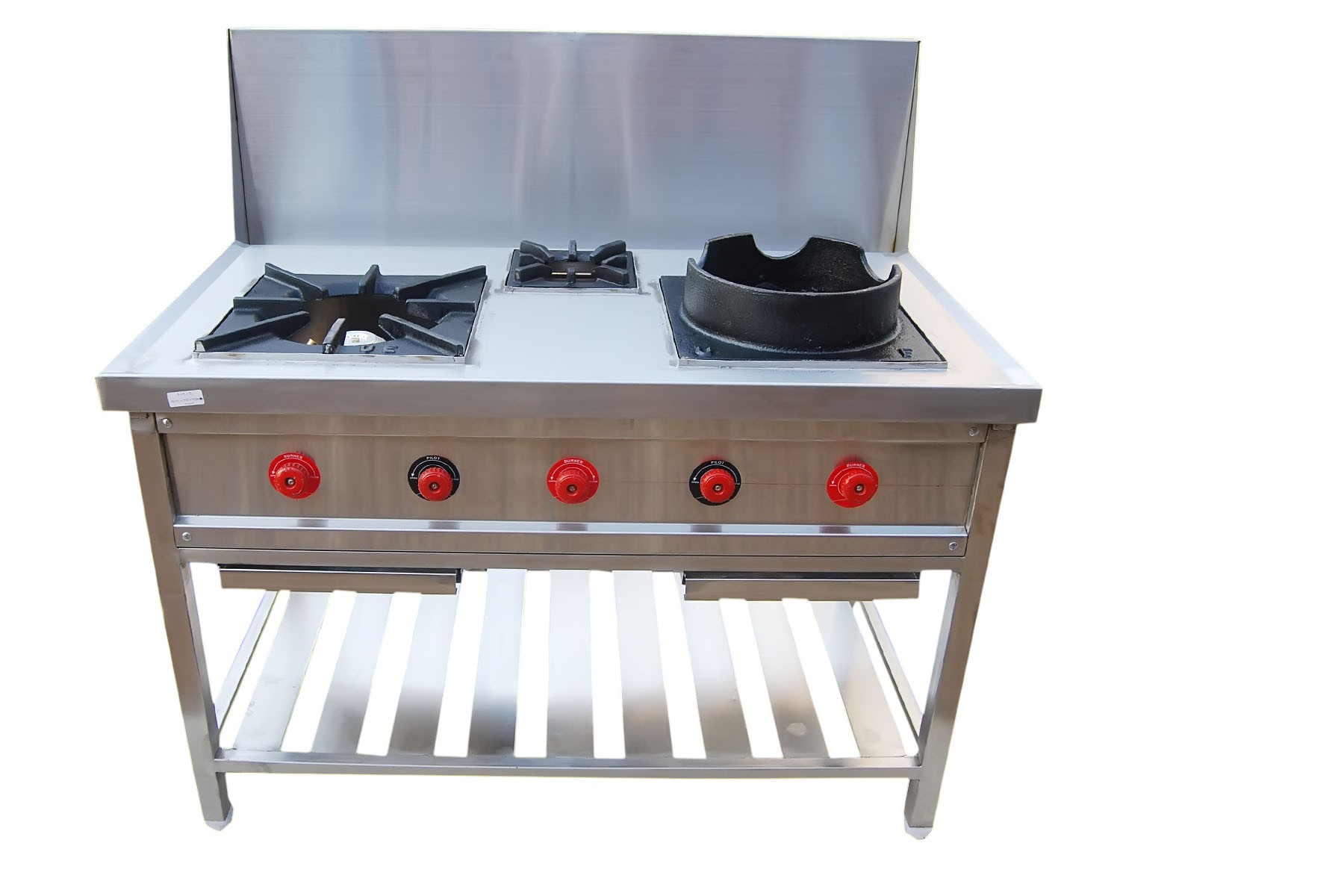

Two Burner Chinese Range
  • 2 Burner Chinese Gas Range with Splash Back & Under Shelf
  • Fully fabricated in SS 304 with 18 SWG top, side, pilot & manifold panels
  • Under shelf made of SS flat tubes
  • Legs: SS 40×40 mm square pipe with adjustable nylon bullet feet
  • Includes drip tray, 12” splash back & drain gutter
  • Fitted with 1 heavy-duty CI wok & 1 heavy-duty pan support
  • Burners: 1 High,1 Low Pressure, 1Small Low Pressure Stock pot Burner with 1Pilot with Manifold etc. etc.
  • Size: 54 × 28 × 30 inches (H + 12 inches)
Three Burner Range
Three Burner Chinese Range
  • 3 Burner Chinese Gas Range with Splash Back & Under Shelf
  • Fully fabricated in SS 304 with 18 SWG top, side, pilot & manifold panels
  • Under shelf made of SS flat tubes
  • Legs: SS 40×40 mm square pipe with adjustable nylon bullet feet
  • Includes drip tray, 12” splash back & drain gutter
  • Fitted with 1 heavy-duty CI Chinese wok & 2 heavy-duty CI pan supports
  • Burners: 2High,1 Low Pressure, 1Small Low Pressure Stock pot Burner with 1Pilot with Manifold etc etc.
  • Size: 72 × 28 × 30 inches (H + 12 inches)
Three Burner Range

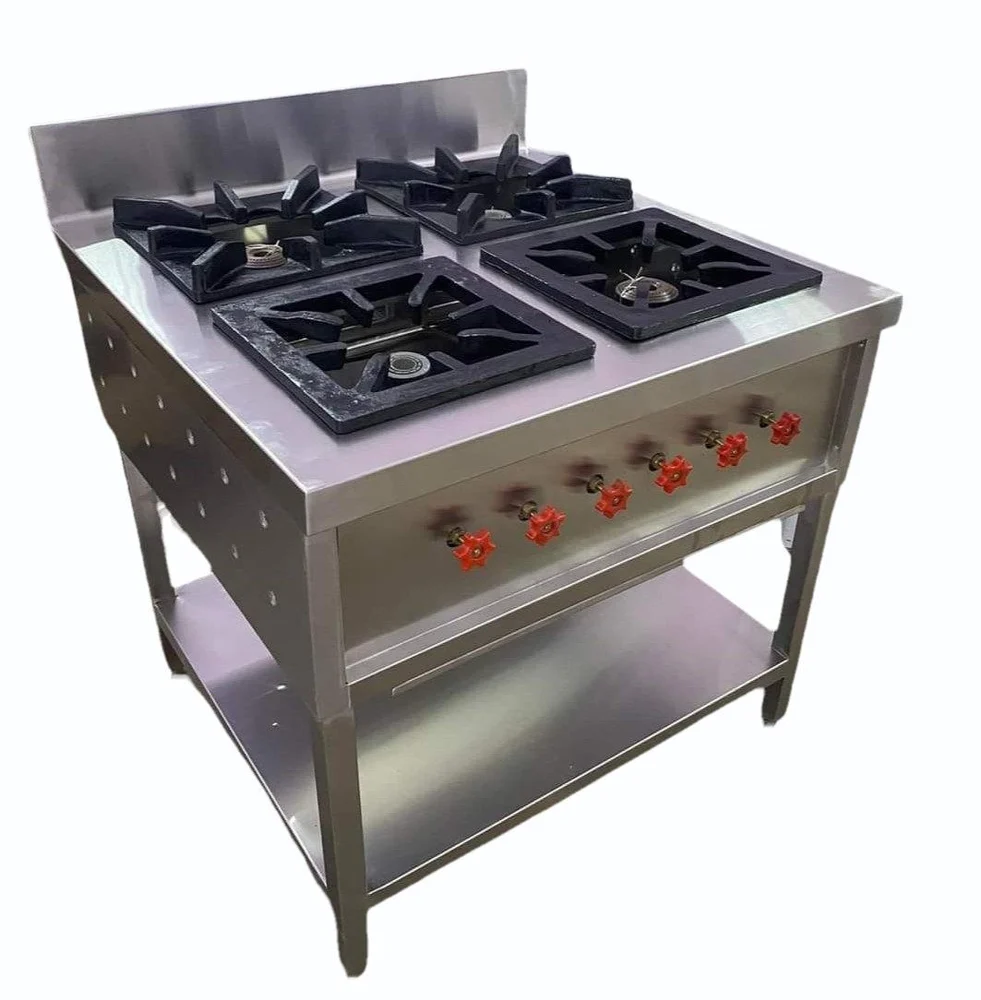

Continental Range
  • Continental Gas Range – 4 Burner with Splash Back & Under Shelf
  • Fully fabricated in SS 304 with 18 SWG top & side panels and pilot & manifold system
  • Under shelf made of 19 SWG stainless steel
  • Legs: SS 40×40 mm square pipe with adjustable nylon bullet feet
  • Includes drip tray and heavy-duty CI pan support
  • Burners: 2 high-pressure, 2 low-pressure burners with 1 pilot, manifold & control valves
  • Size: 34 × 34 × 30 inches (H + 5 inches)
Three Burner Range
Continental Range with Oven
  • Continental Gas Range – 4 Burner with Splash Back & Under Shelf
  • Fully fabricated in SS 304 with 18 SWG top & side panels and pilot & manifold system
  • Under shelf made of 19 SWG stainless steel
  • Legs: SS 40×40 mm square pipe with adjustable nylon bullet feet
  • Includes drip tray and heavy-duty CI pan support
  • Burners: 2 high-pressure, 2 low-pressure burners with 1 pilot, manifold & control valves
  • Size: 34 × 34 × 30 inches (H + 5 inches)
  • Oven : Electric with Thermostat Control
  • Chamber Size: 400x350x400mmH
  • Power: 3Kw.
  • Temp.: 80-300°C
Three Burner Range

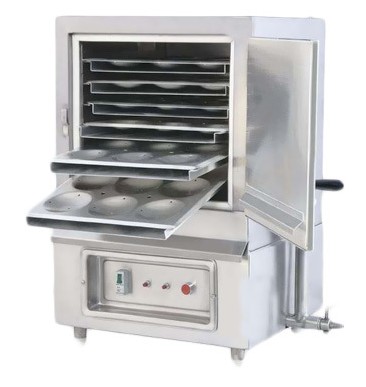

Idli Steamer - Gas / Electric
  • Idli Steamer - Gas / Electric
  • Fabricated Fully in SS.304 Body: 16Swg
  • Tray Holders: H Duty SS L Angle
  • Idli Trays Ss 304.
  • Drip Trays: Aluminium
  • Stand (Optional):In SS Sq.Pipes.
  • In Case Gas Operated
  • V Burner, Manifold, Control Valve etc.
  • In Case Electric:
  • 2Kw Immersible Heaters, Thermostatic Control, On/Off Switch etc
  • Capacity:
  • Tray: 9 Idlis each
  • Production: 45/54/63/72 Idlis at a Time
  • Size: Tray14x16”
  • Unit:18x20x18/22/26/32”H
Three Burner Range

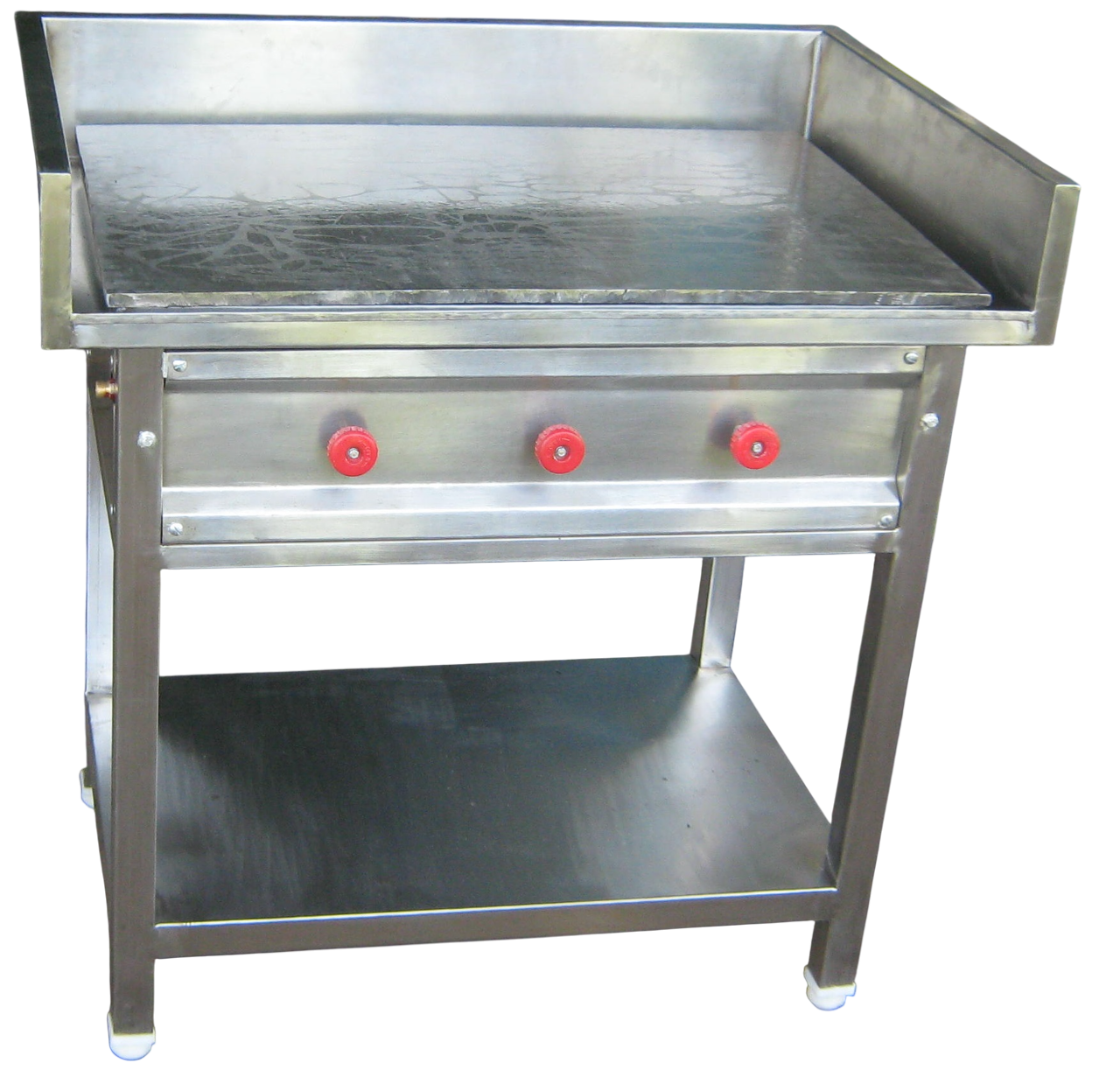

Dosa Bhatti / Hot Plate
  • Dosa Bhatti With Oil Drain Gutter, Oil Tray & Splash Back:
  • Top : SS18 Swg.
  • U/Shelf: Ss Sheet or
  • Cooking Plate:8mm or 12mm MS. Plate
  • Legs: SS 40x40mm Sq. pipe, with Adjustable Nylon Bullet feet.
  • Size: 36x24x30”H+4
  • Burner: V Type. Manifold, Pigtail, and Control Valves
  • Size:36/48/60x24x30”H+5
Three Burner Range

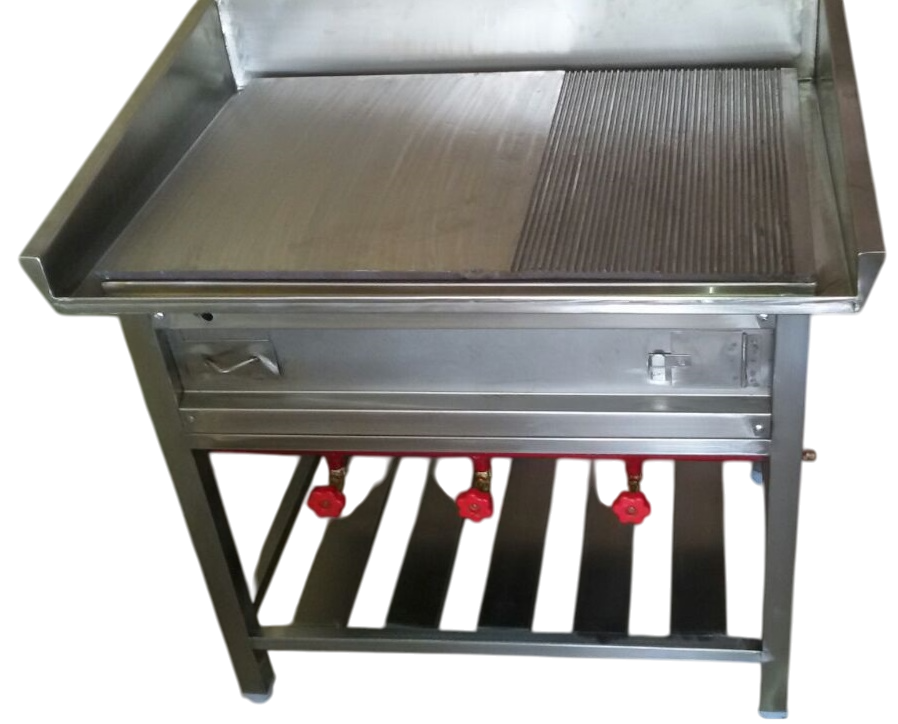

Hot / Griddle Plate Half Grooved
  • Hot / Griddle Plate Half Grooved
  • With Oil Drain Gutter, Oil Tray & Splash Back:
  • Top : SS18 Swg.
  • U/Shelf: Ss Sheet or Ss Flat Tubes.
  • Cooking Plate: 12mm MS. Plate
  • Legs: SS 40x40mm Sq. pipe, with Adjustable Nylon Bullet feet.
  • Burner: V Type. Manifold, Pigtail, and Control Valves
  • Size:36/48/60x24x30”H+5
Three Burner Range

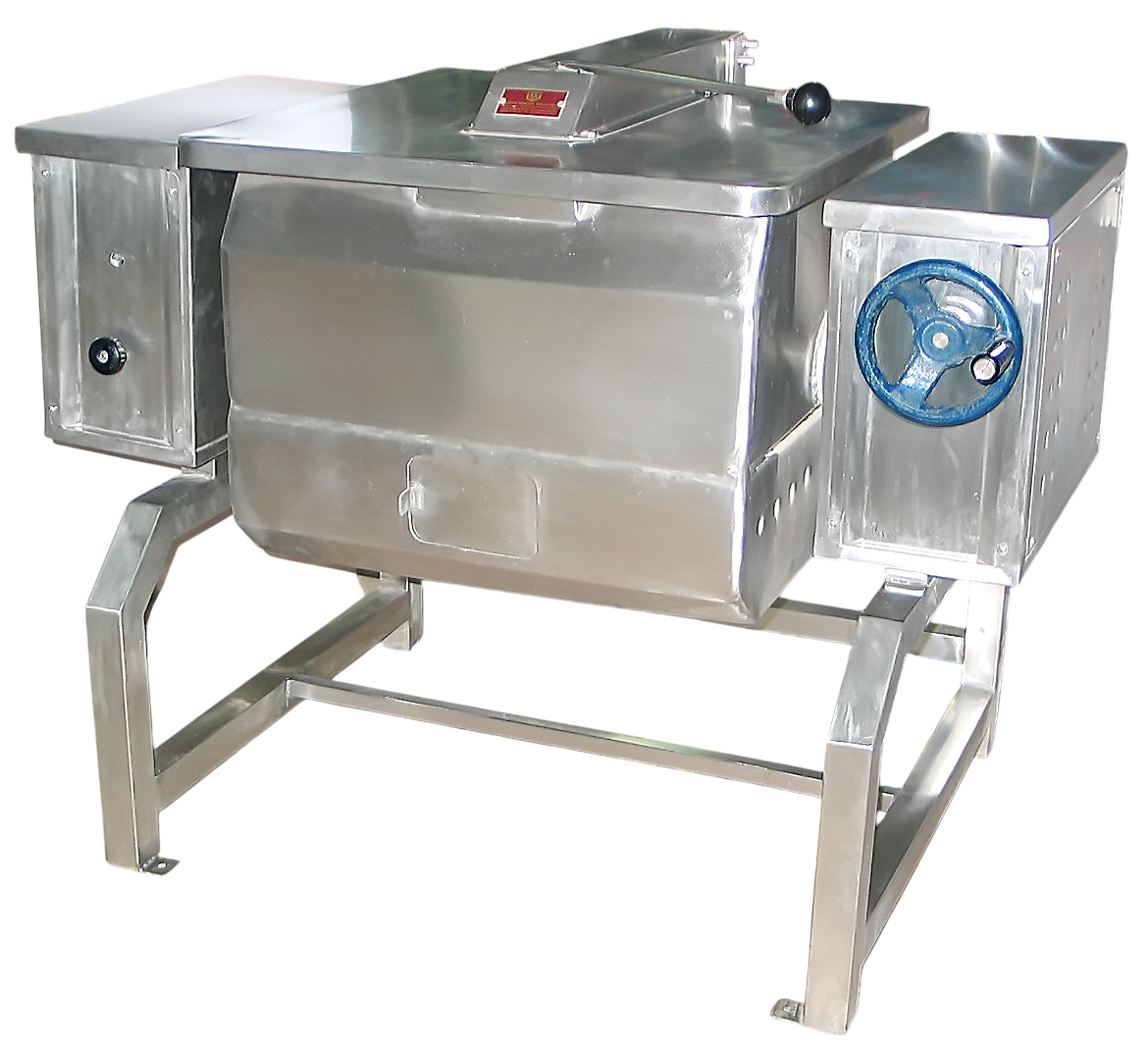

Tilting Bratt Pan
  • Stainless steel body
Three Burner Range
Tilting Boiling Pan with Gear
  • Stainless steel body
Three Burner Range

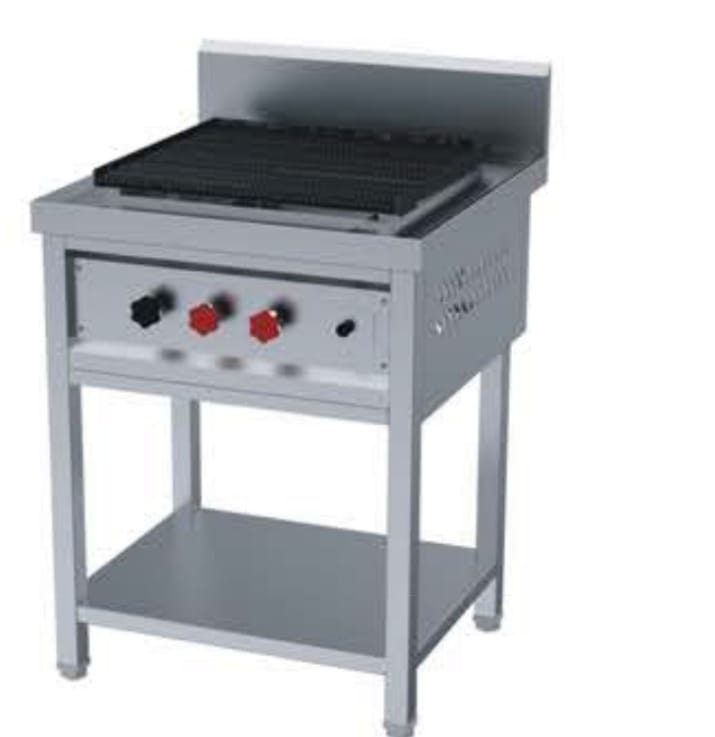

Lava Stone Grill
  • Stainless steel body

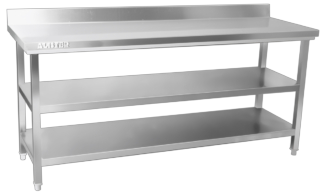

Work Table with 2 U/S Flash Back
Work Table with 2 U/S Flash Back
  • Stainless steel body
Masala Table with GN Containers
Masala Table with GN Containers
  • Stainless steel body
Pick-up Counter
Pick-up Counter
  • Fabricated Fully in SS.304 with Top: 18 Swg.
  • Under& Over Shelves: 19Swg
  • 3sides closed: 20Swg.
  • Legs: SS 40x40mm Sq. pipe, with Adjustable Nylon Bullet feet.
  • Size: 72x24x34” H+12+18"
Pick-up Counter with Heater
Pick-up Counter with Heater
  • Stainless steel body
Under Counter Chiller
Under Counter Chiller
  • Stainless steel body
Single Sink Unit
Single Sink Unit
  • Single/2/3 Sink Unit with Splash Back:
  • Fabricated Fully in SS.304 with Top & Sinks: 18 Swg.
  • Over Shelves: 19Swg
  • Legs: SS 40mm Dia round pipe with Adjustable Nylon Bullet feet, Cross Bracings for Support & Waste Coupling.
  • Size: 24/48/72x24x34” H+5
  • Sink Size: 18x18x8”D x 2/3; 16x16x8”D x Single.
Double Sink Unit
Double Sink Unit
  • Stainless steel body

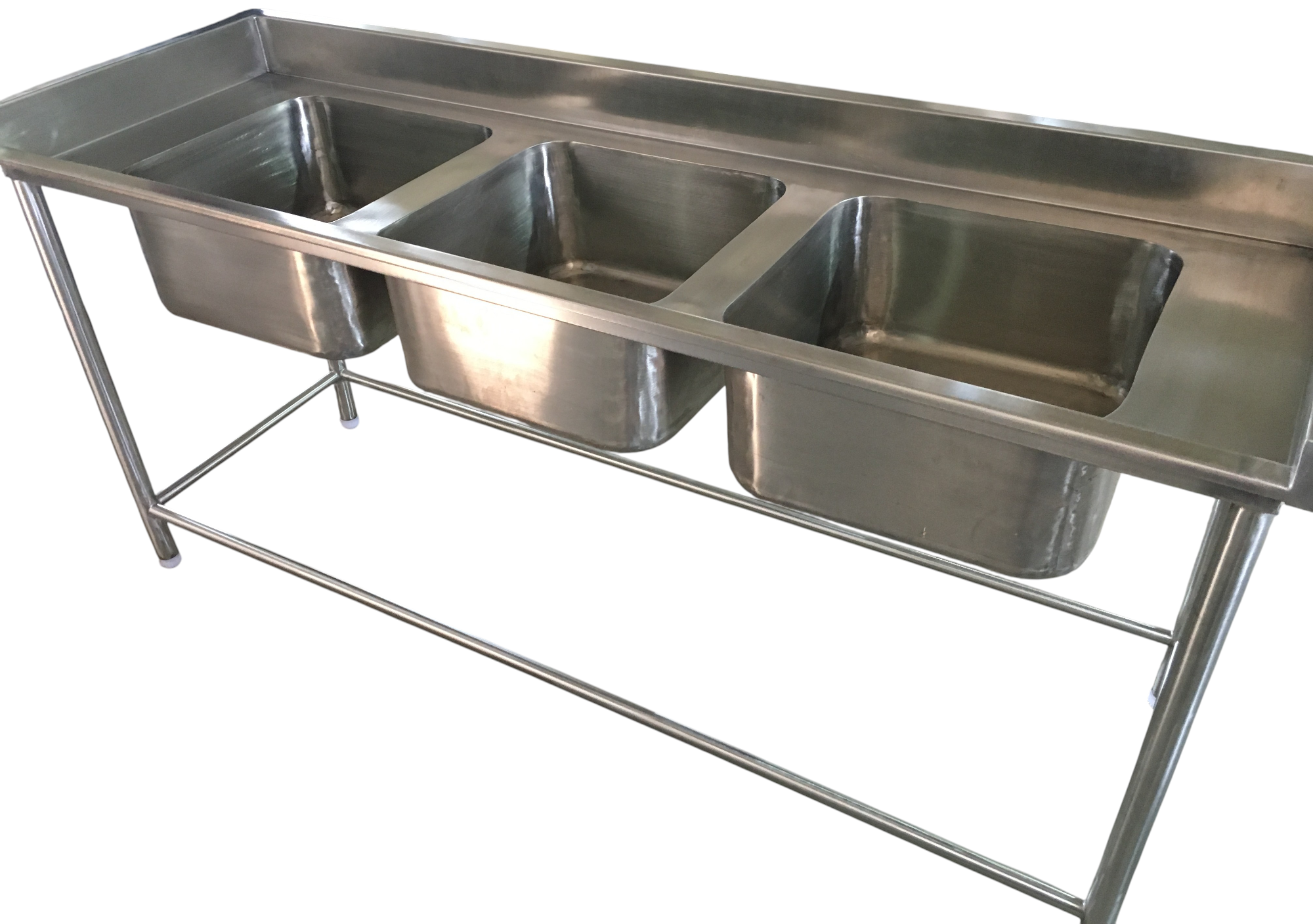

Three Sink Unit
Three Sink Unit
  • Stainless steel body

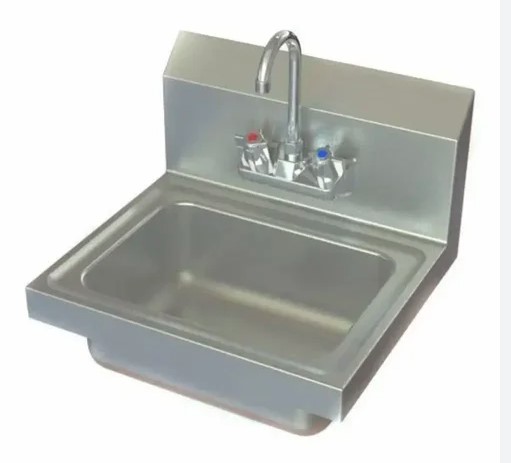

Hand Wash Though
Hand Wash Though
  • Stainless steel body
Pot Wash Sink Unit
Pot Wash Sink Unit
  • Complete S.S. Single sink unit with panel & box fabricated from 18 SWG S.S. Sheet and fitted with 40mm O.D. S.S. Legs with due support, coupling & collar

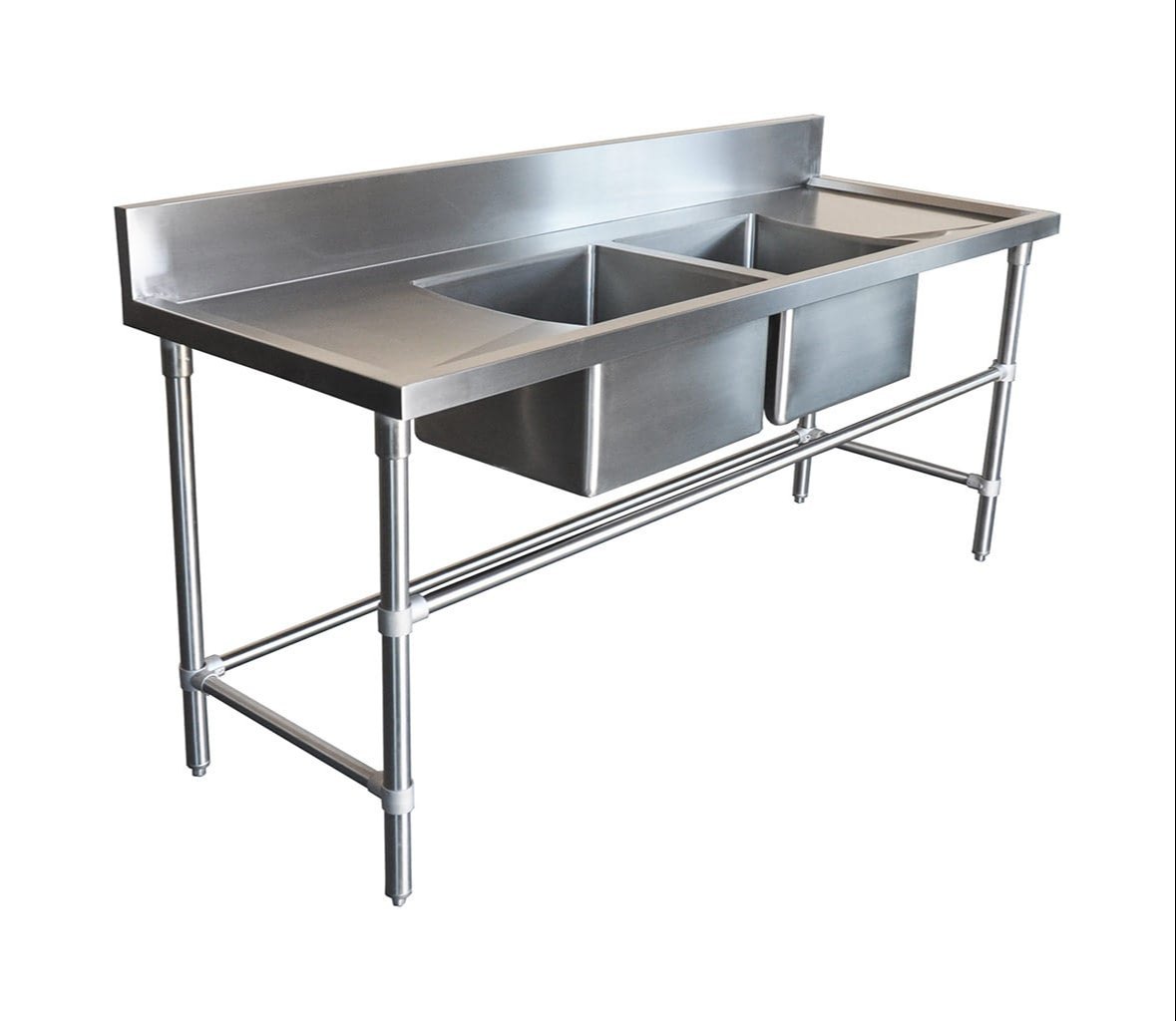

Work Table with Sink
Work Table with Sink
  • Stainless steel body
Pot Rack
Pot Rack
  • Pot Rack with 4 Shelves Fabricated Fully in SS.304 with Shelves: 25mm SS round Pipes outer frame fitted with 20mm SS Round Pipes for Shelves
  • Uprights- Legs: SS 40mm Dia round pipe with Adjustable Nylon Bullet feet,
  • Size: 48x24x66”H
Plate Rack
Plate Rack
  • Plate /Clean Dish /Glass /Storage Rack (4/5 Shelves)
  • Fabricated Fully in SS.304 with Shelves: 18 Swg.
  • (With V Border) Frame - Legs: SS 40mm Dia round pipe with Adjustable Nylon Bullet feet,
  • Size: 24/36/48x18x66"H
Service Counter with Bain Marie
Service Counter with Bain Marie
  • Stainless steel body
Hot Case 6+1
Bain Marie
  • Stainless steel body
Hot Case 4+1
Bain Marie 12
  • Stainless steel body

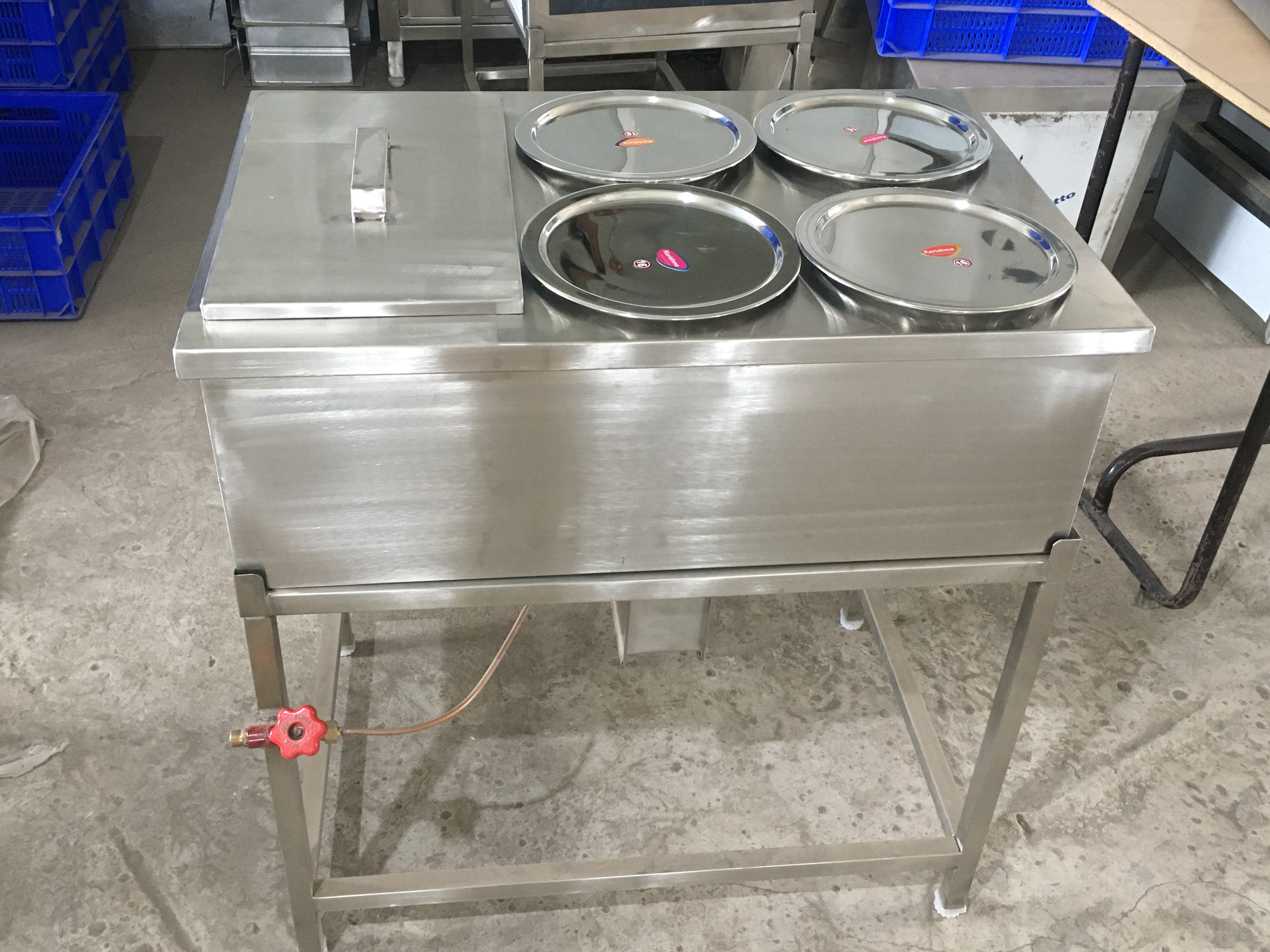

Bain Marie Counter
4 Round Containers +1 Rice Box Bain Marie
  • 4 Round Containers +1 Rice Box Bain Marie - Gas Fabricated Fully in SS.304 with Top: 18 Swg.
  • Legs: SS 40x40mm Sq. pipe, with Adjustable Nylon Bullet feet.
  • Water Drain Valve, Gas Burner Control Valve etc.
  • Rice Box 8x16x8” Rectangular
  • BainMarie:4 Round Containers 8” Dia 6 Ltrs. Capa.
  • Size: 30x20x30”H
Storage Rack
Storage Rack
  • Storage Rack (4/5 Shelves)
  • Fabricated Fully in SS.304 with Shelves: 18 Swg.
  • (With V Border) Frame - Legs: SS 40mm Dia round pipe with Adjustable Nylon Bullet feet,
  • Size: 24/36/48x18x66"H
Tray Rack Trolley
Tray Rack Trolley
  • Stainless steel body

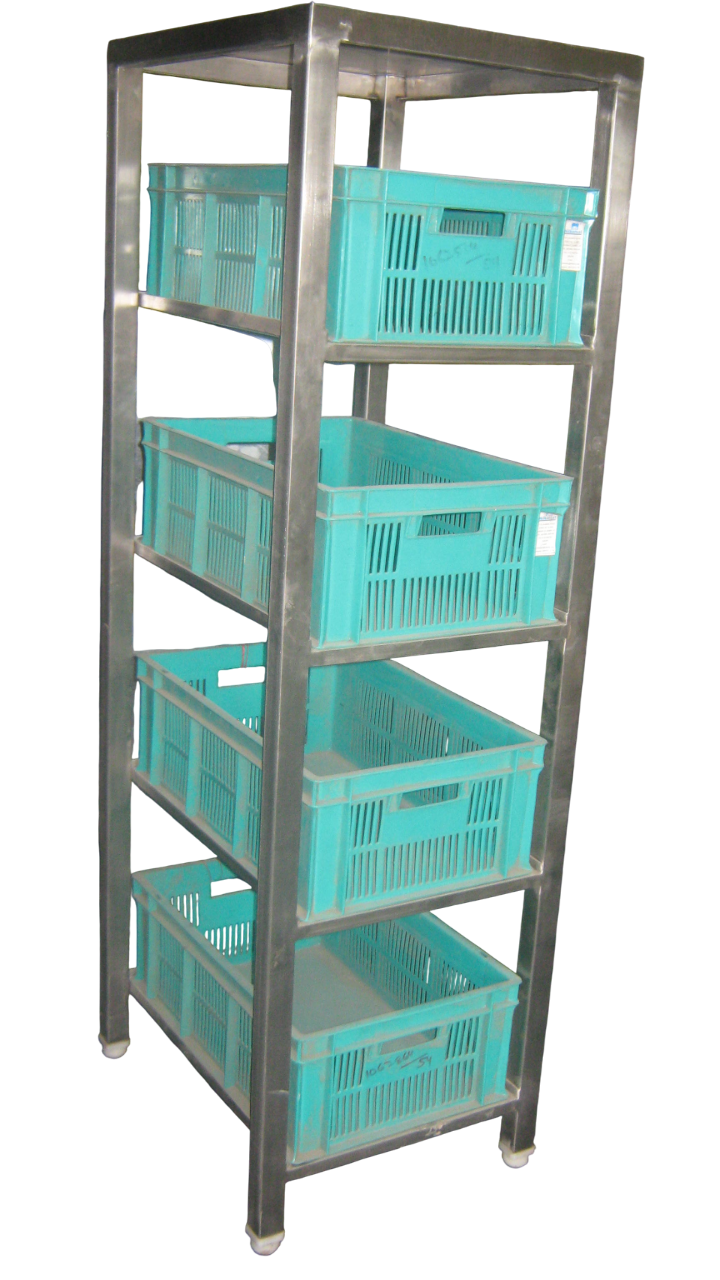

Vegetable Rack
Vegetable Rack
  • Vegetable Storage Rack
  • Fabricated from S.S. 1.25" Sq.
  • Pipe Frame and SS L Angles provided with 5 Nos. Nilkamal Plastic Crates
  • Size:18x24x66" H
Onion/Potato Storage Bin
Onion/Potato Storage Bin
  • Onion Potato Bin
  • Top Fabricated in 18 Gauge S.S. Sheet, 1" Square Pipe Frame,
  • 1"x1" Square Mesh Door Fitting on Higes. M.S. Frame.

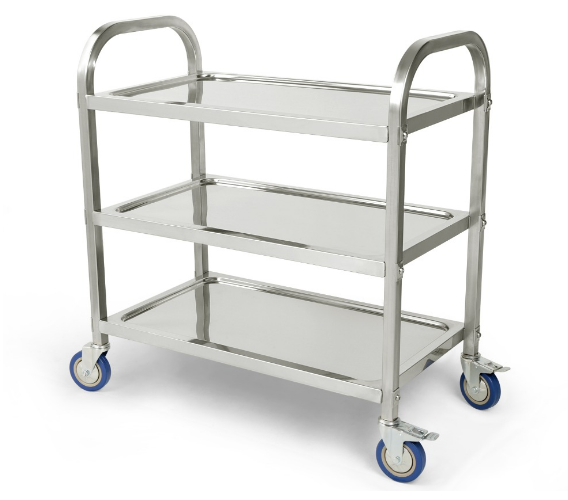

Utility Trolley
Utility Trolley
  • Stainless steel body

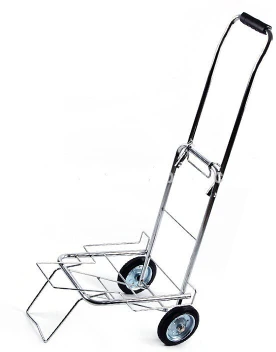

Luggage Trolley
Luggage Trolley
  • Stainless steel body
Platform Trolley
Platform Trolley
  • Stainless steel body
Tandoor Mataka
Tandoor Mataka
  • Stainless steel body
Drum Tandoor SS
Drum Tandoor SS
  • Outer Body: SSteel 16Swg with 1.5” Sq pipe frame.
  • Inner Body: MS 18Swg
  • Insulation: Glasswool
  • Capacity: Medium size 25 rotis
  • Matka:Baked, Khanapur Ceramic Blended,
  • Top: Kota stone & provided with Heavyduty C.I. Castor Wheels.
  • Installation: At Site
  • Size: 32x32x36”H

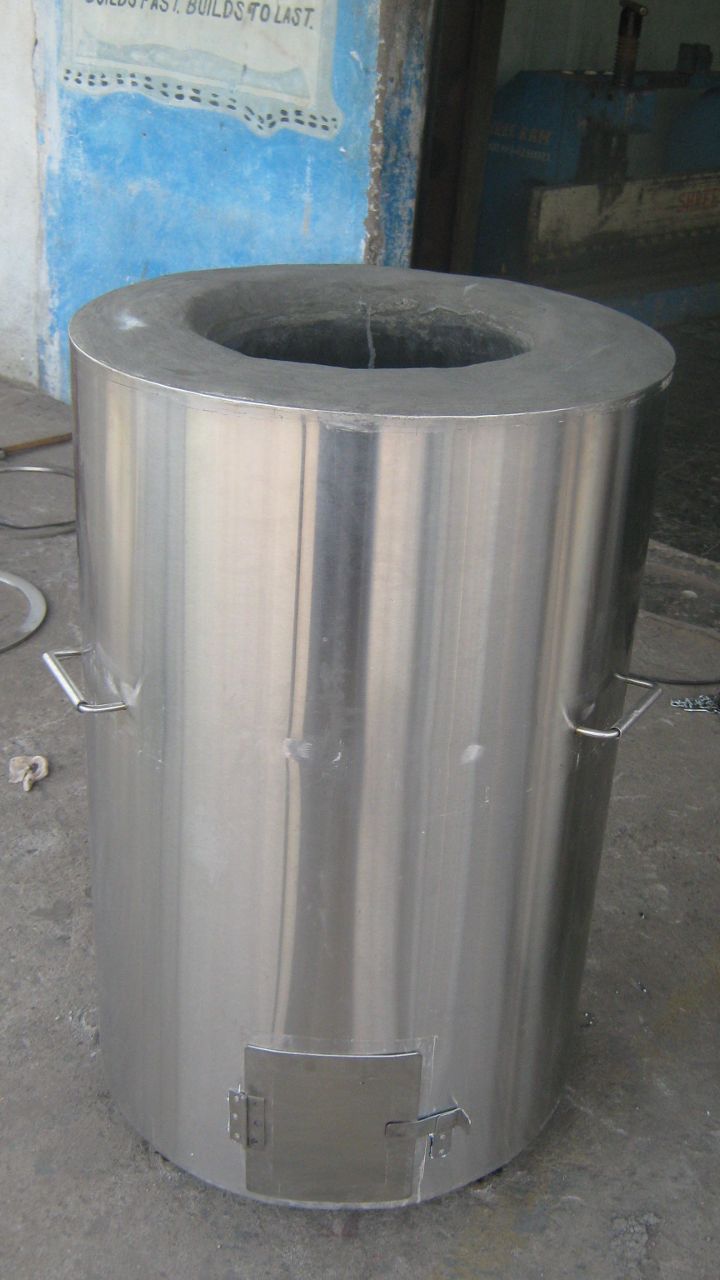

Tandoor
Drum Tandor
  • Outer Body: SSteel 16Swg with 1.5” Sq pipe frame.
  • Inner Body: MS 18Swg
  • Insulation: Glasswool
  • Capacity: Medium size 25 rotis
  • Matka:Baked, Khanapur Ceramic Blended,
  • Top: Kota stone & provided with Heavyduty C.I. Castor Wheels.
  • Installation: At Site
  • Size: 32x32x36”H
Mobile SS Tandoor
Mobile SS Tandoor
  • SS Mobile Tandoor – Double Walled
  • Outer Body: SSteel 16Swg with 1.5” Sq pipe frame.
  • Inner Body: MS 18Swg
  • Insulation: Glasswool
  • Capacity: Medium size 25 rotis
  • Matka:Baked, Khanapur Ceramic Blended,
  • Top: Kota stone & provided with Heavyduty C.I. Castor Wheels.
  • Installation: At Site
  • Size: 32x32x36”H

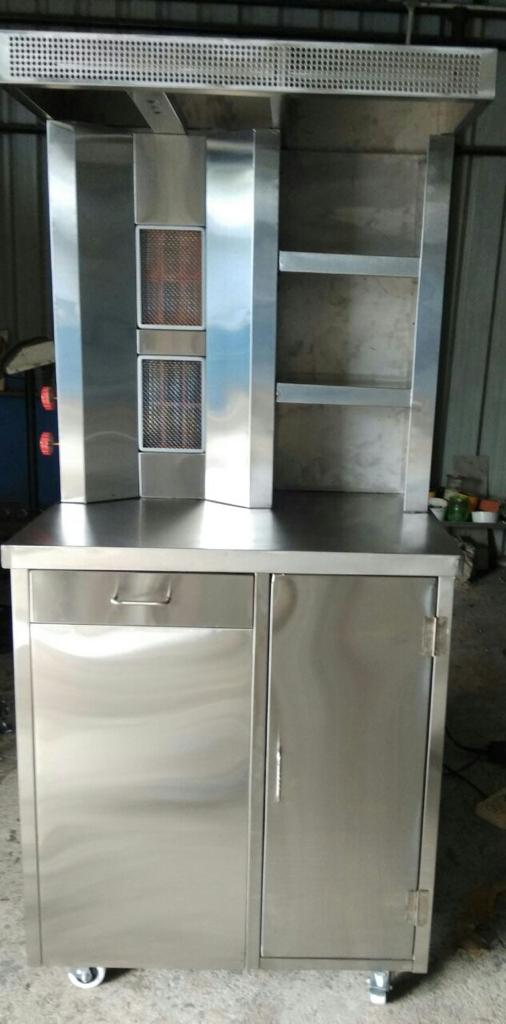

Shoarma Machine with Counter
Shoarma Machine with Counter
  • Stainless steel body

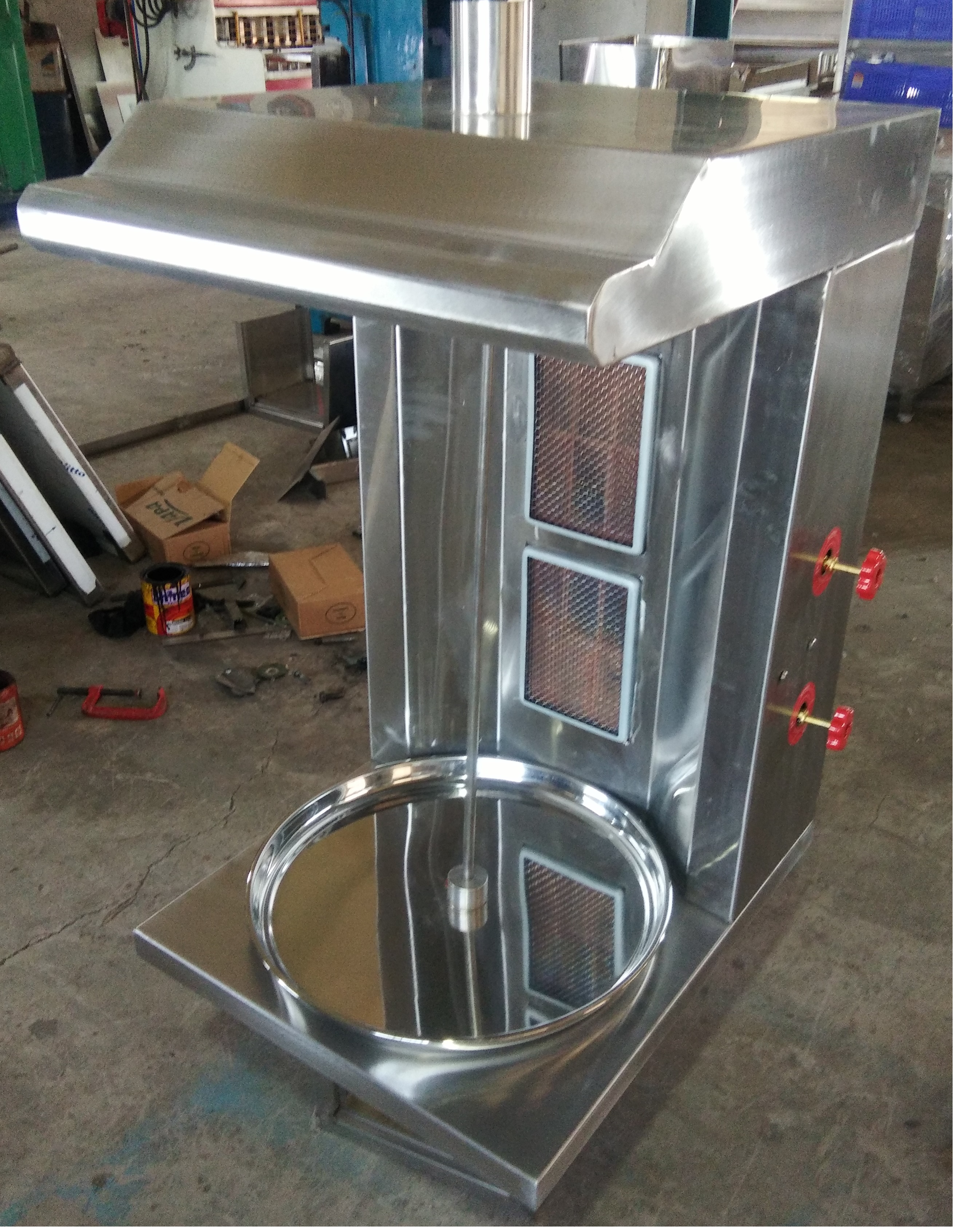

Shoarma Machine
Shoarma Machine
  • Stainless steel body
Bar-Be-Que Counter
Drum Tandoor Blue
  • Stainless steel body

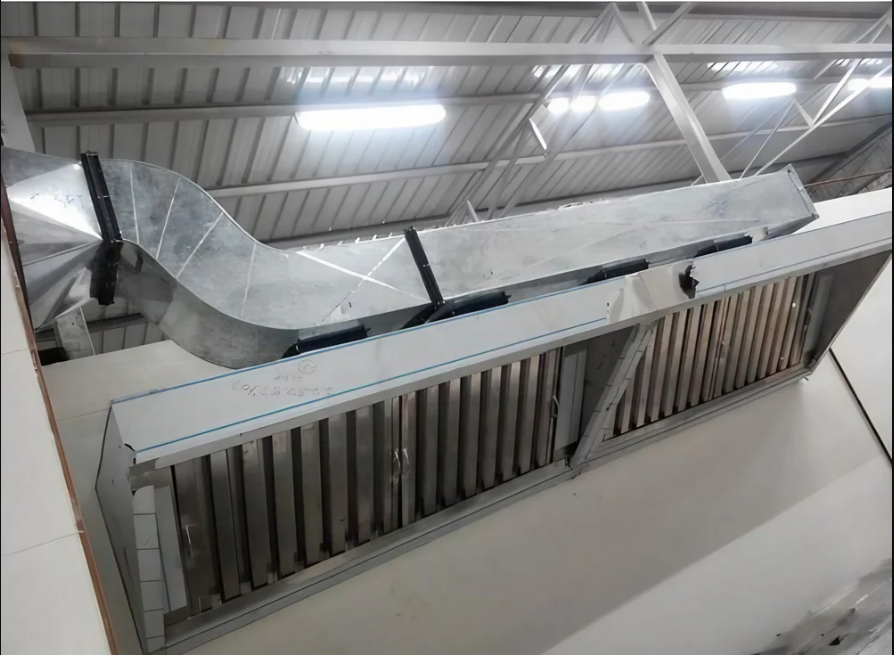

Exhaust Hood
Exhaust Hood
  • Stainless steel body
Three Burner Range

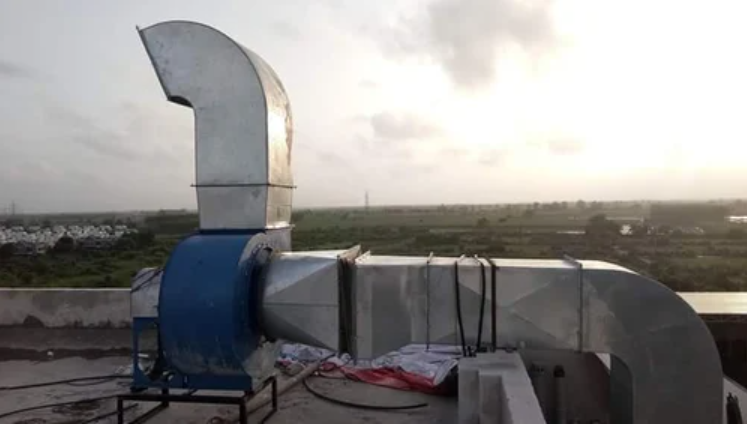

Exhaust Blower
  • Stainless steel body
Three Burner Range

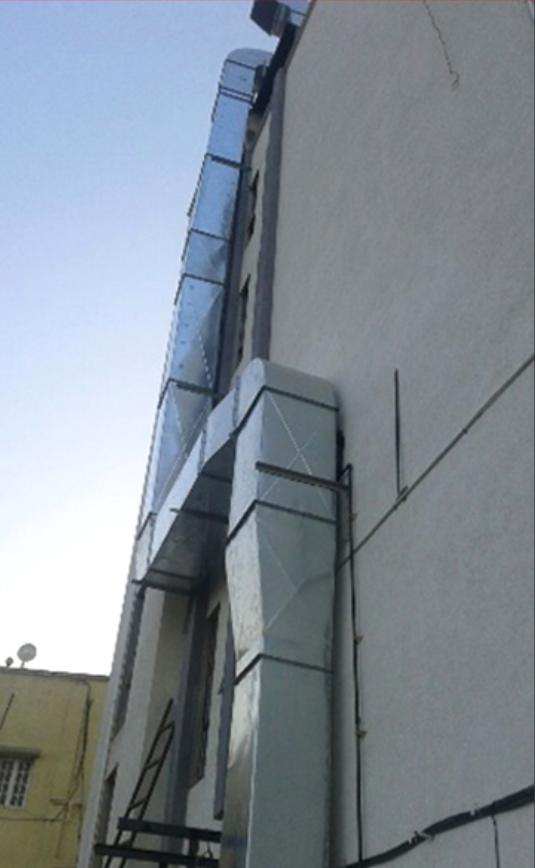

Ducting
  • Stainless steel body
